InPress™ Air Quality Controller
Ensure Clean Air and Safety in Dusty Environments
Protective Mounting Case with CO₂ Sensor Pod
InPress™ Air Quality Controller
Ensure Clean Air and Safety in Dusty Environments
Real-time monitoring and controlling of your cabin air filtration and pressurisation system, ensuring efficiency and exceeding the ISO 23875 standard.
Touchscreen displays live cabin pressure and CO₂ levels, with built-in data logging and event tracking for reliable system performance records.
Measures:
-
Pressure
-
Motor Capactiy
-
CO2
Applications
Operator Cabin Pressurisation
Clean Room Pressurisation
Gallery

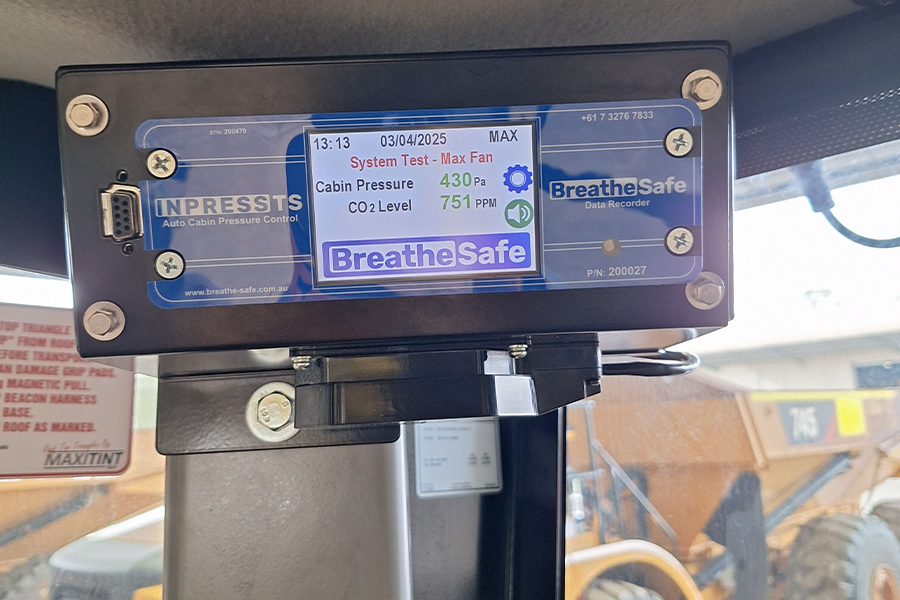

Caterpillar Grader 160

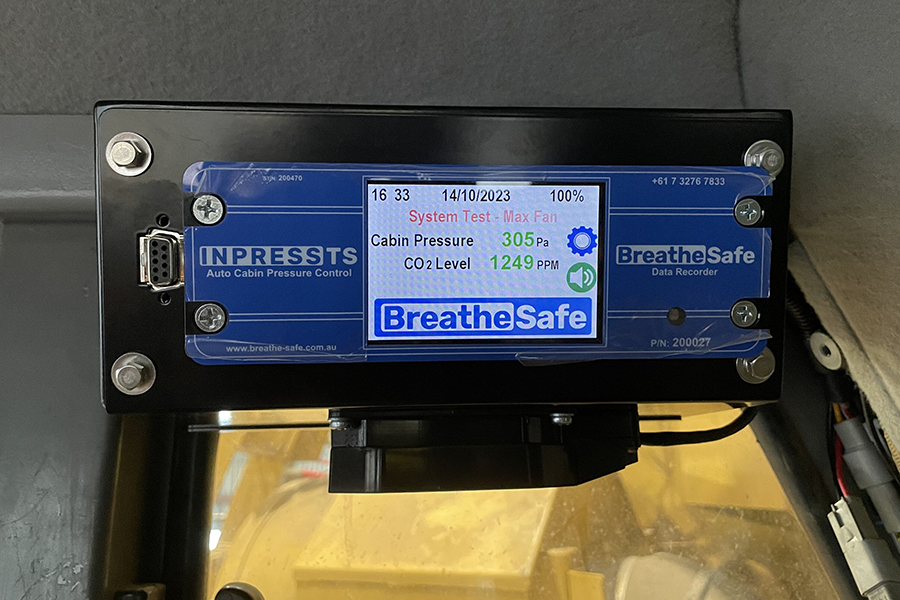

Caterpillar Haul Truck 785C

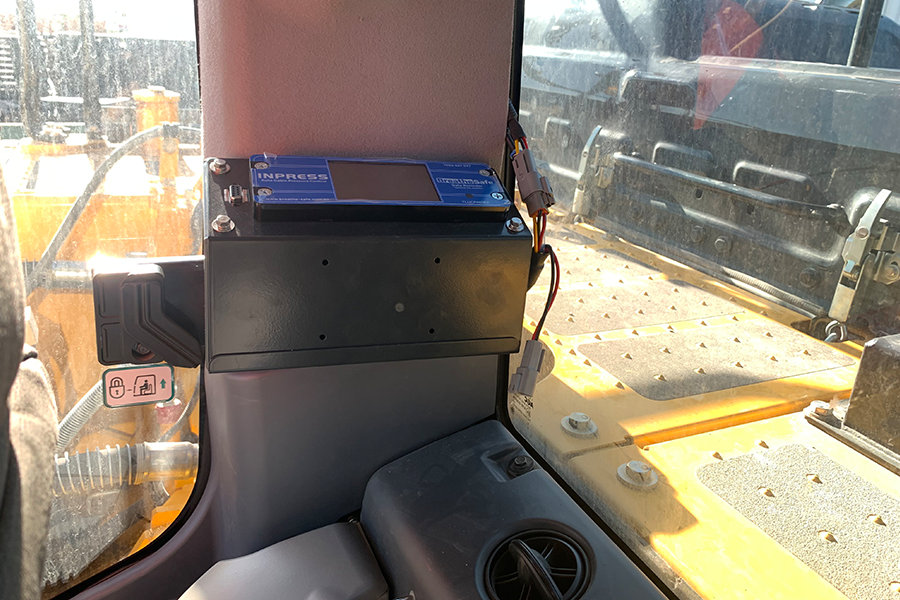

Komatsu Excavator PC200LCi

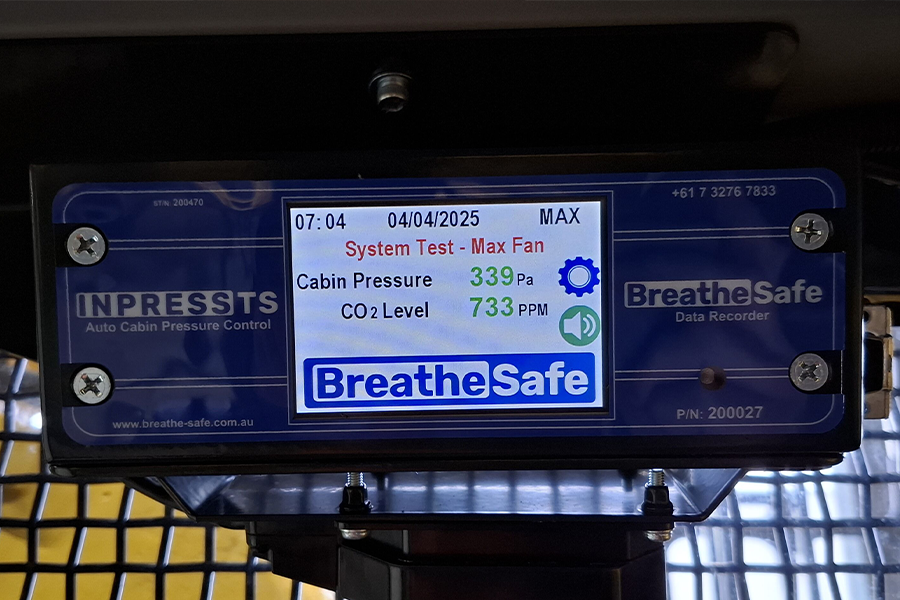

Komatsu Excavator PC1250-11R

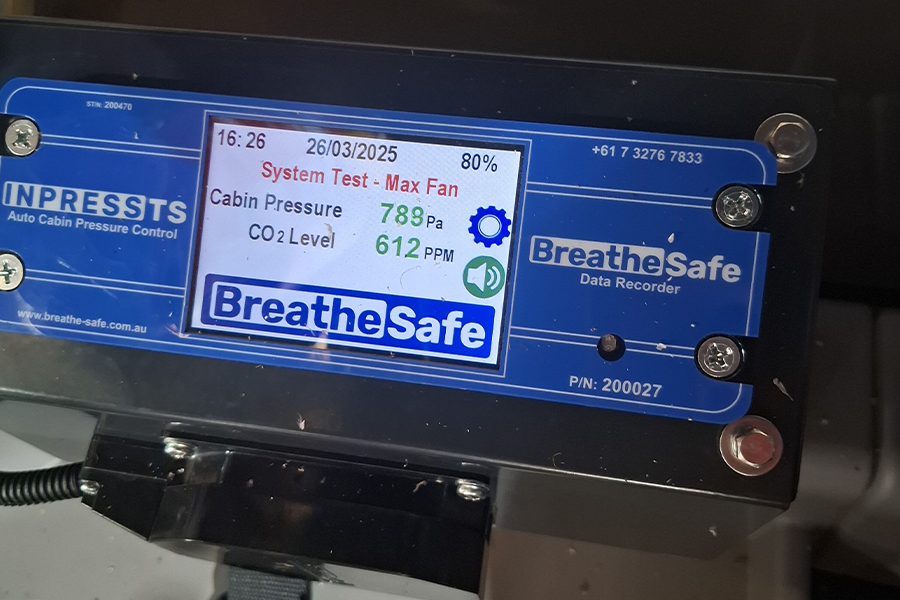

Komatsu Wheel Loader WA500-8

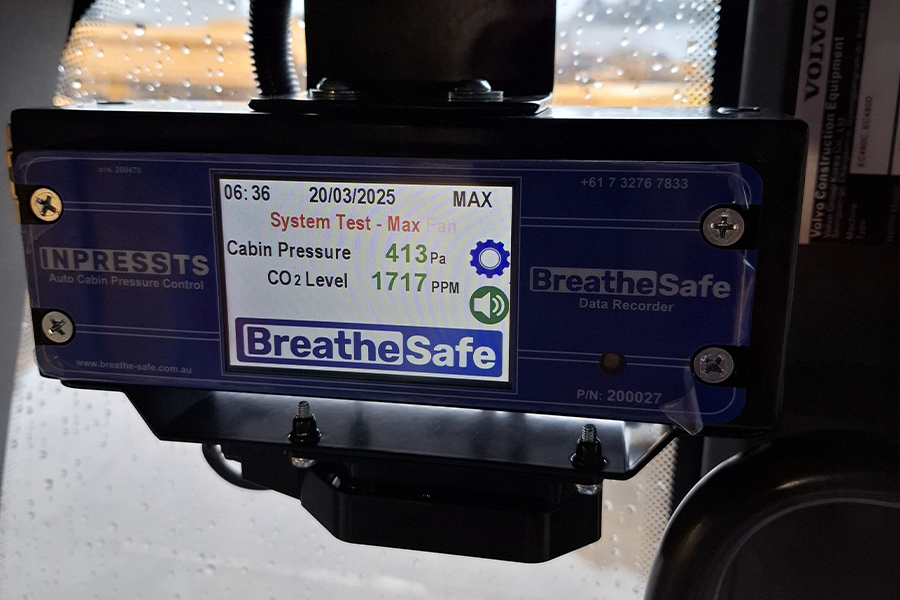

Volvo Excavator EC480DL

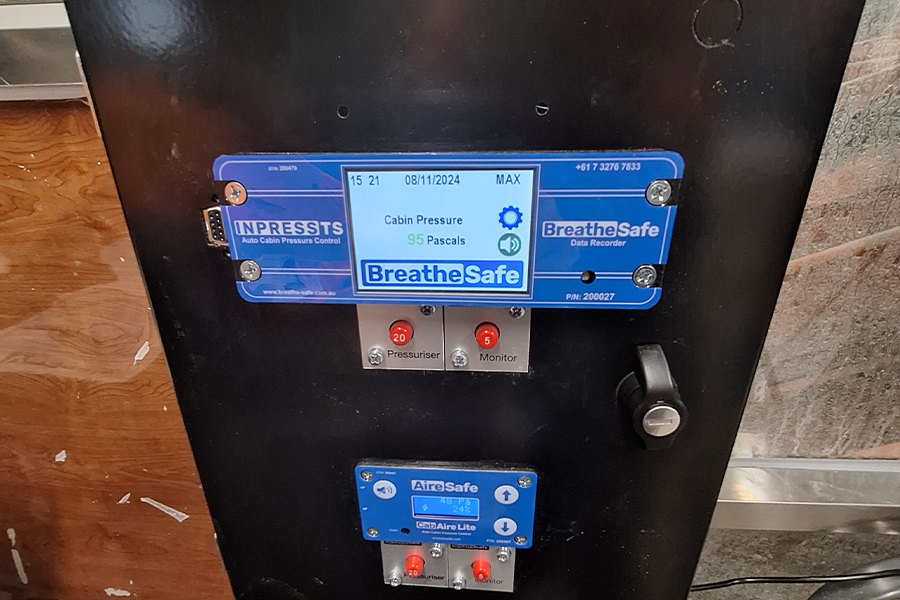

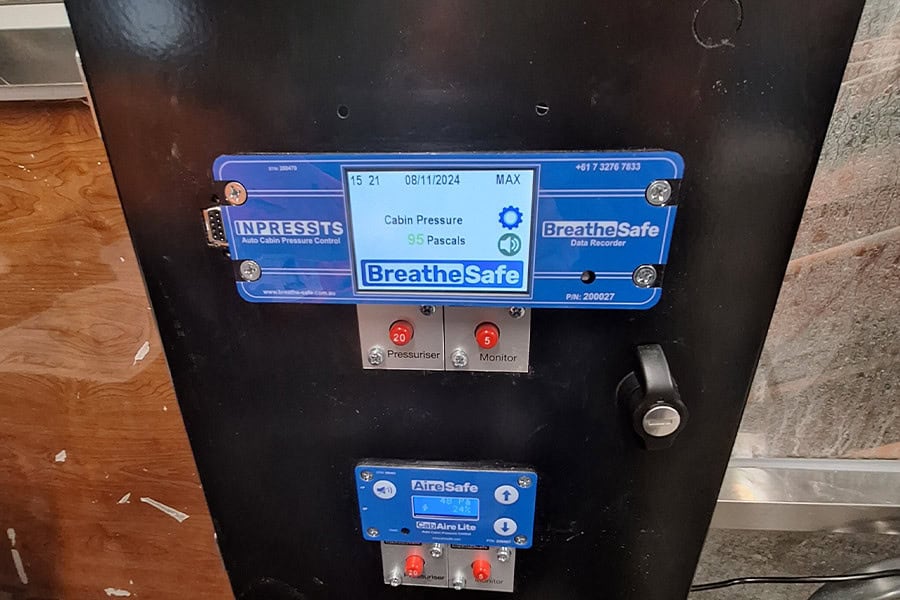

Control Room (Recycling)

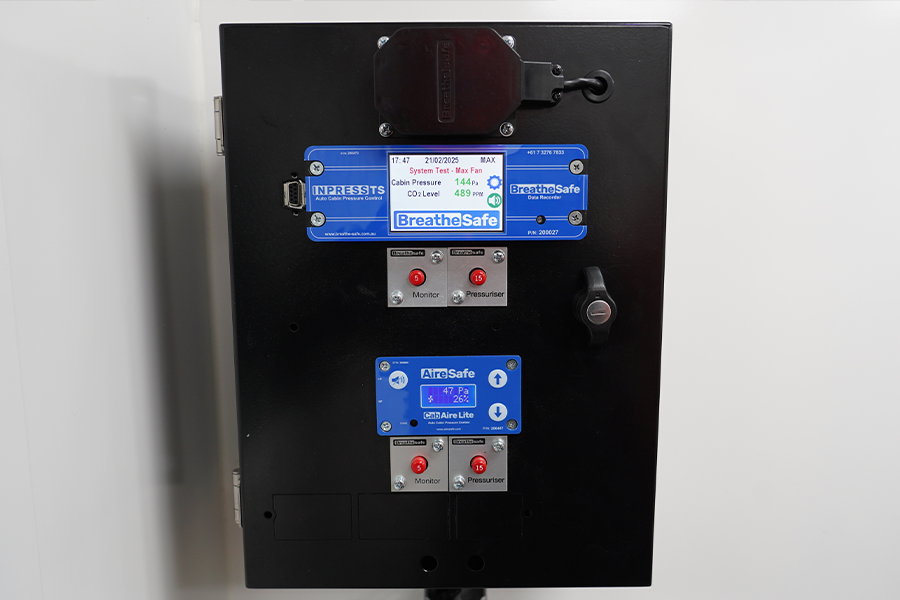

Control Room (Tunneling)

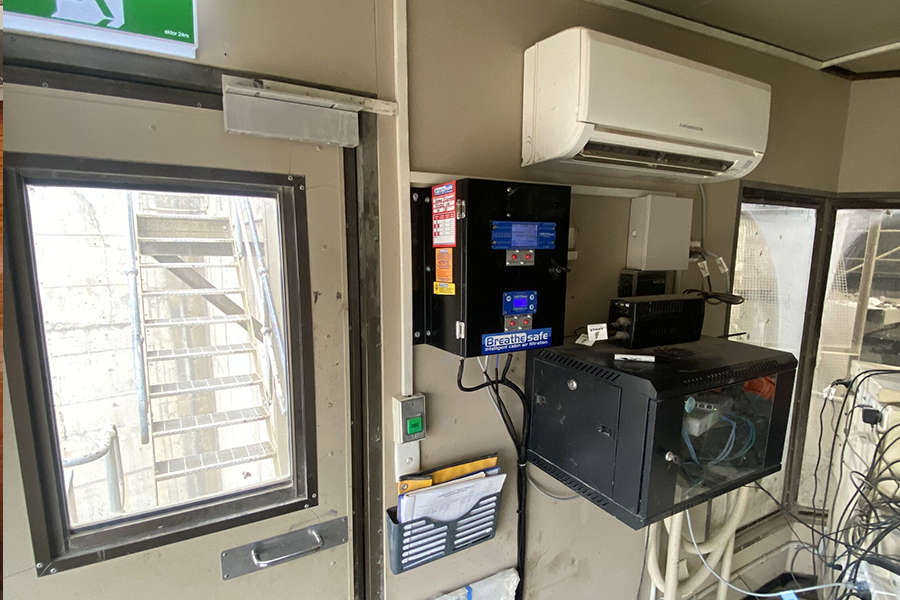

Control Room (Construction)

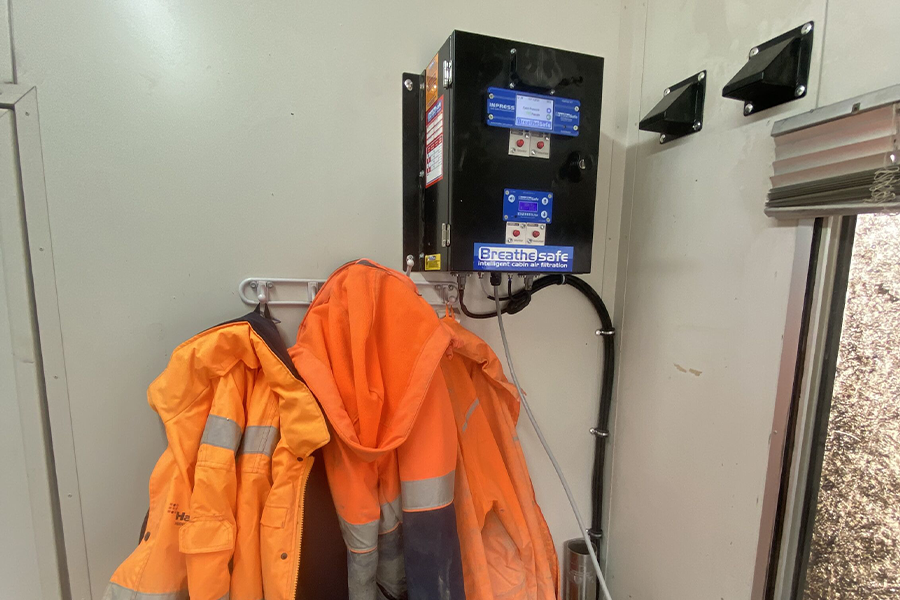

Control Room (Construction)
Features
Hover over the images to play the videos
Touchscreen Display
Live display of cabin pressure and CO₂ levels through a user-friendly, easy-to-navigate interface.
Automatic Pressure Control
Automatically adjusts fan speed to maintain positive cabin pressure as the filter loads.
CO₂ Sensor Add-on
Access your data anywhere. Using a visualisation tool.
Visual and Audible Alerts
Monitor air quality directly in the operator’s breathing zone, ensuring accurate real-time data and maximising cabin space.
Event and Data Logging
Monitor air quality directly in the operator’s breathing zone, ensuring accurate real-time data and maximising cabin space.
Specification
| Parameter | Value |
|---|---|
| Length | 185.2 mm |
| Height | 72.1 mm |
| Width | 62.5 mm |
| Weight | 342.6 g |
| Voltage | 12 - 24 VDC |
| Current | < 85 mA |
| Parameter | Value |
|---|---|
| Length | 120.41 mm |
| Height | 27 mm |
| Width | 55 mm |
| Weight | 85 g |
| Voltage | 12 VDC (Powered by InPress) |
| Current | < 50 mA |
Video Support
InPress Cabin Pressure Monitor
InPress Operator Instructions
Exceed ISO 23875 with InPress
