VacSafe HEPA Vacuum Cleaner
Compact, Efficient, Maximise Protection

VacSafe HEPA Vacuum Cleaner
Compact, Efficient, Maximise Protection

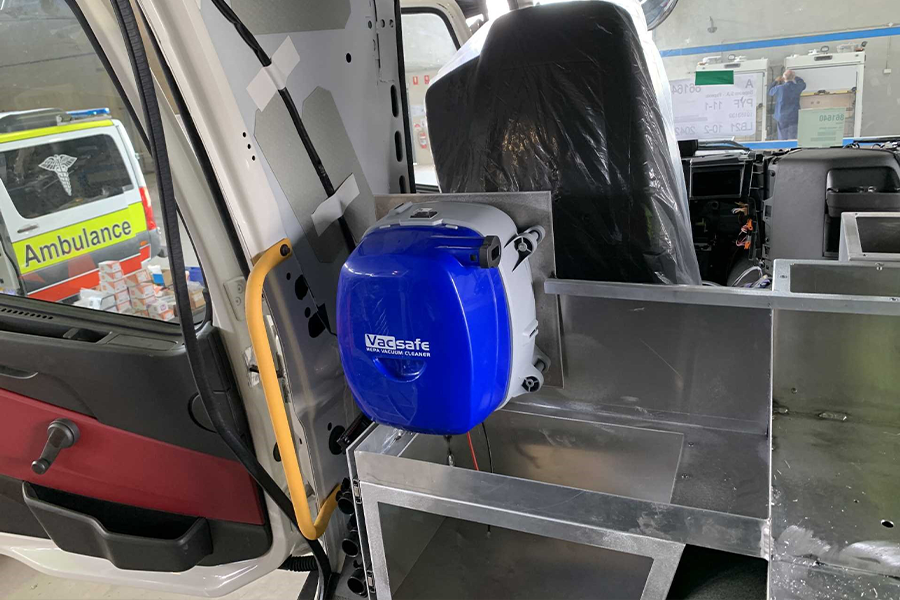

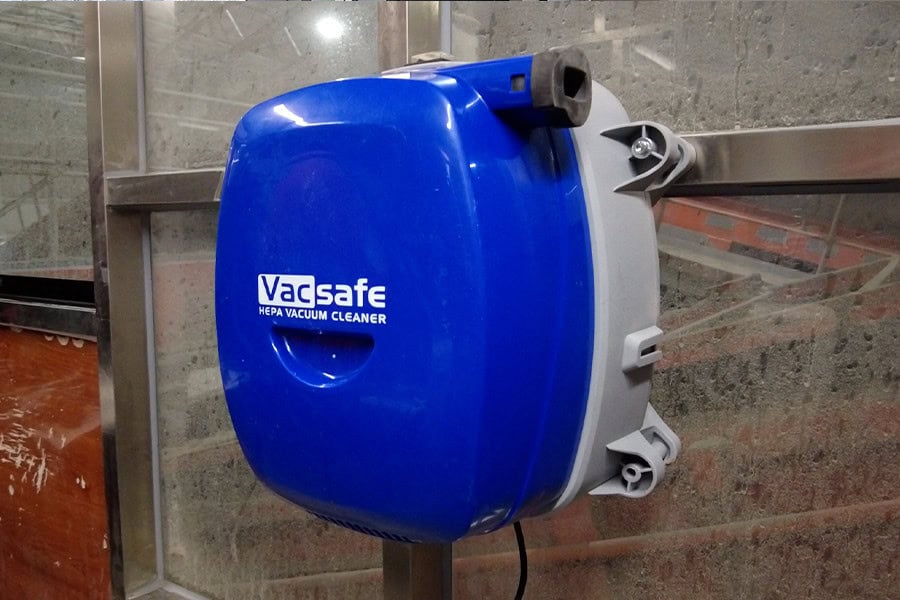

VacSafe vacuum is a high-efficiency HEPA vacuum that captures 99.97% of fine dust and airborne particles ≥0.3 microns. Designed for use in mining cabins, vehicles, and industrial spaces, it removes dust carried in on boots, clothing, and surfaces, reducing filter load, extending filter life, and ensuring a cleaner, safer environment for operators.
Applications

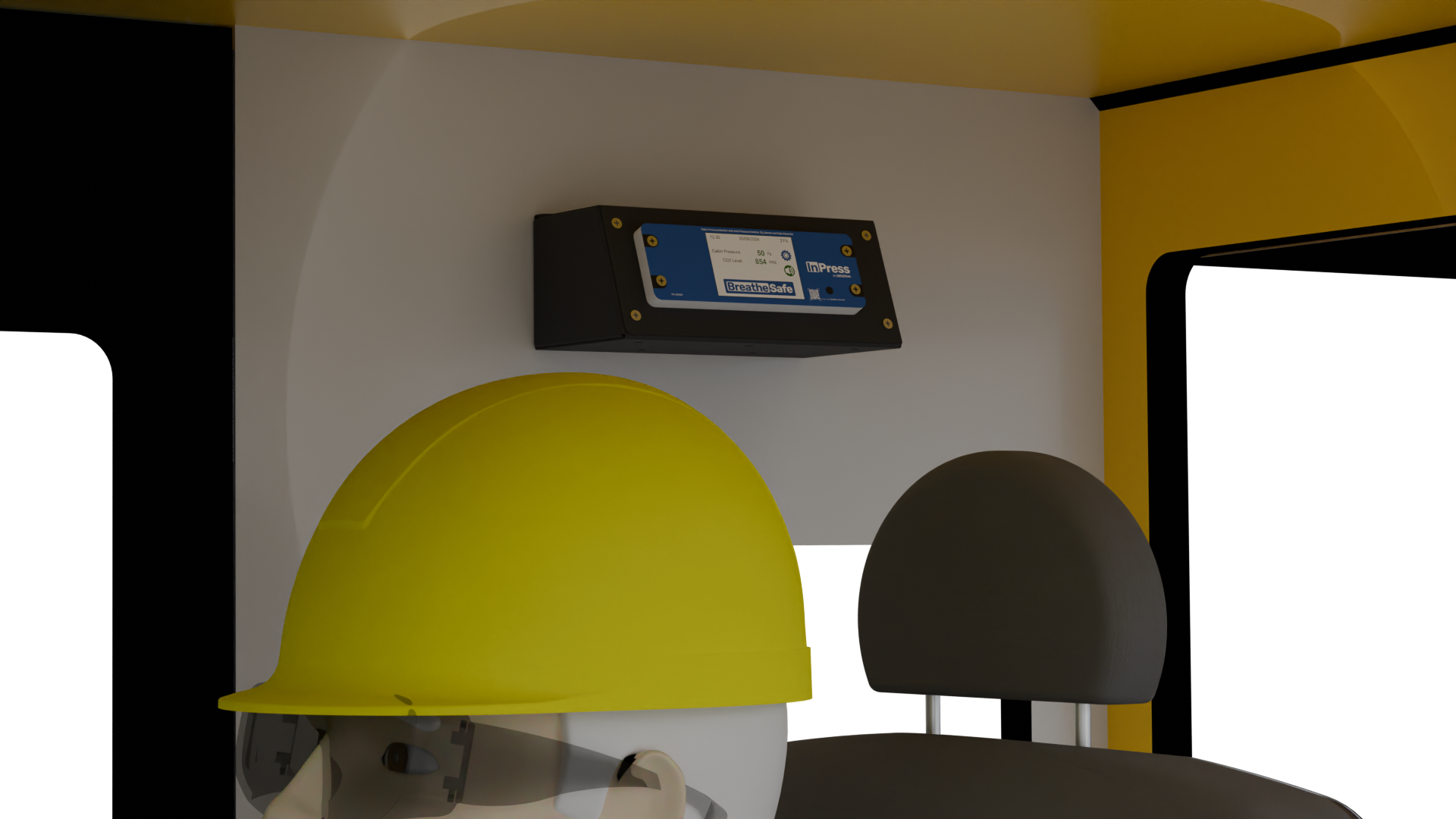

Operator Cabin Pressurisation

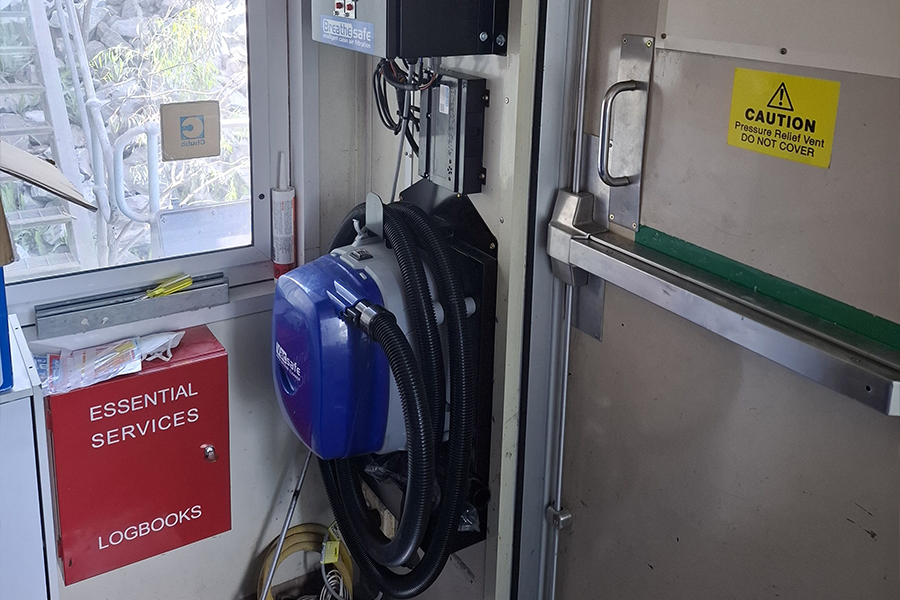

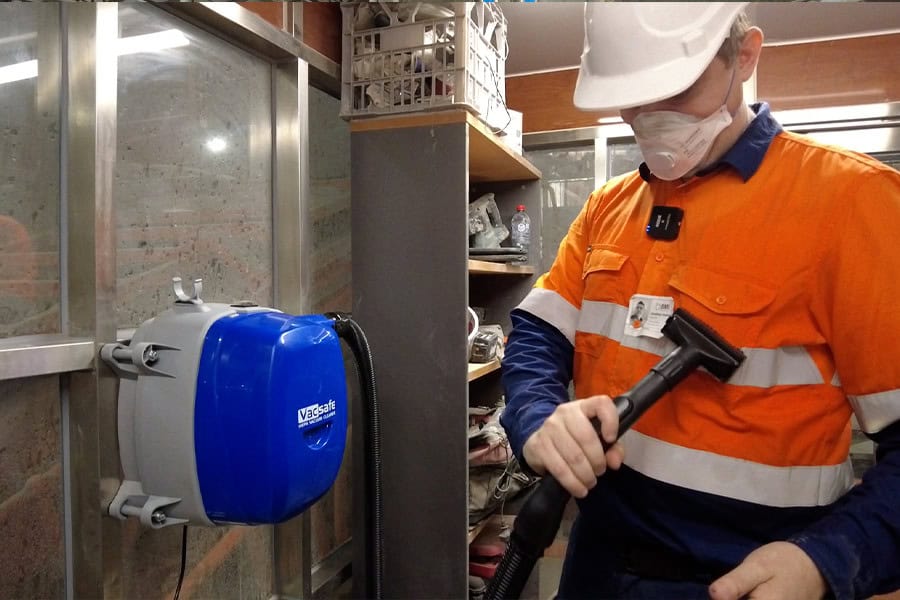

Clean Room Pressurisation
Features

True HEPA Filtration
Captures 99.97% of airborne particles ≥0.3 microns, including fine dust, silica, and other hazardous contaminants.

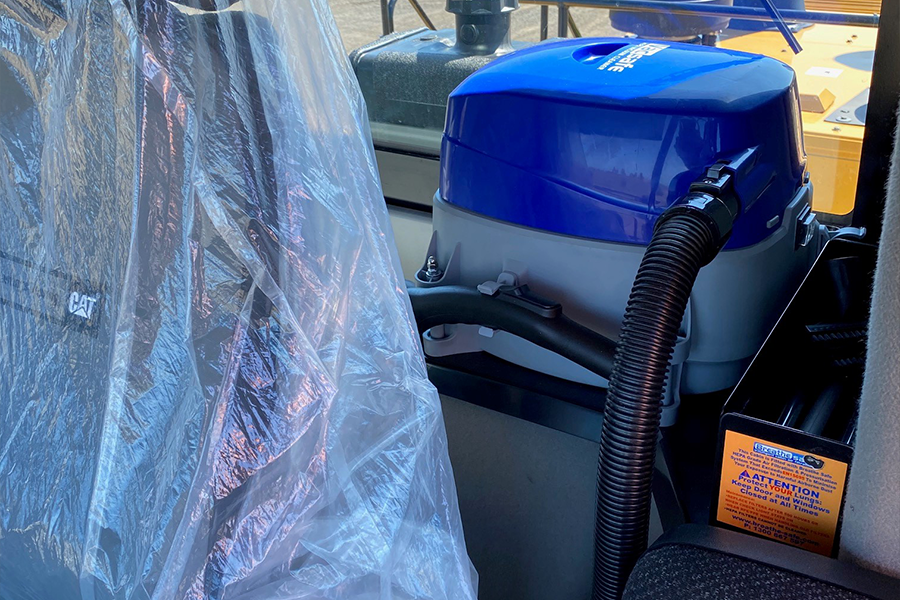

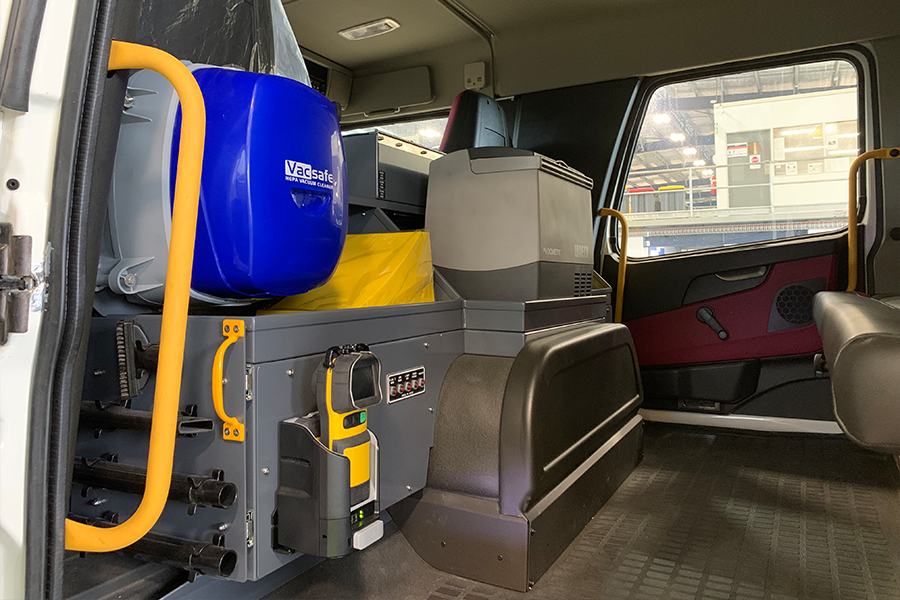

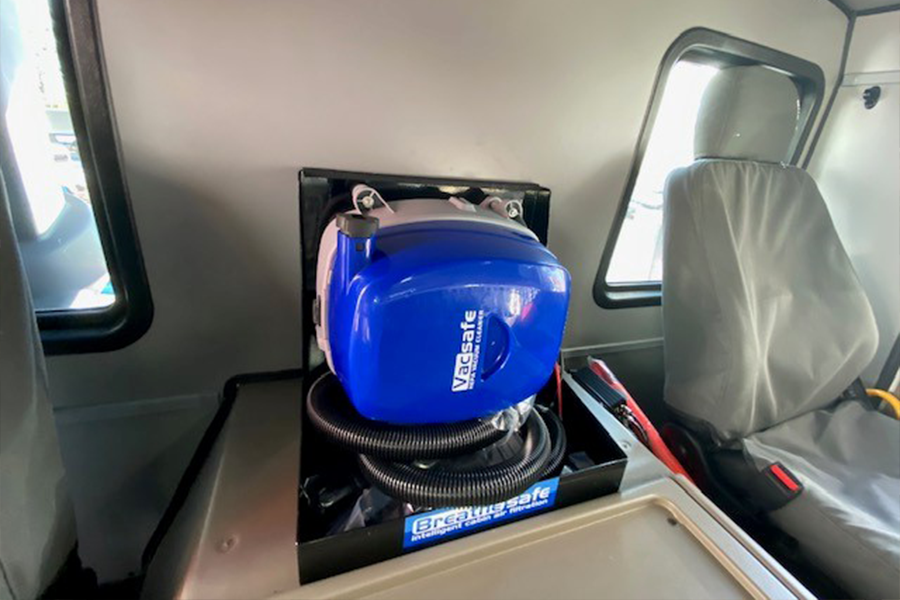

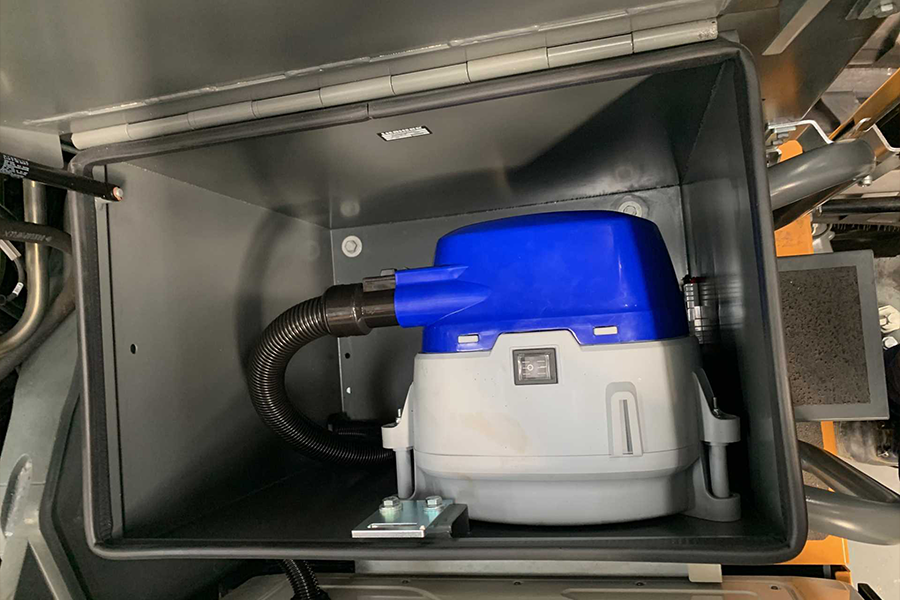

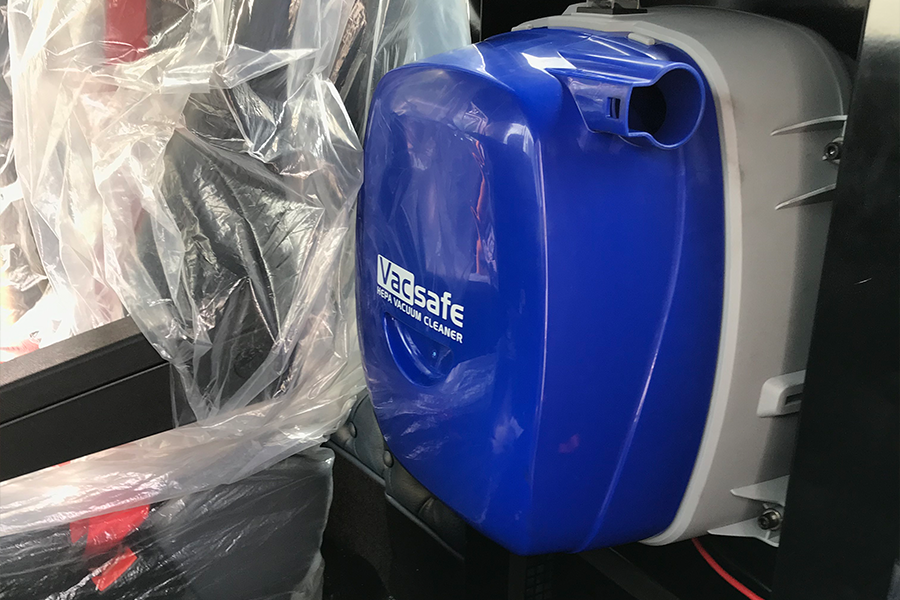

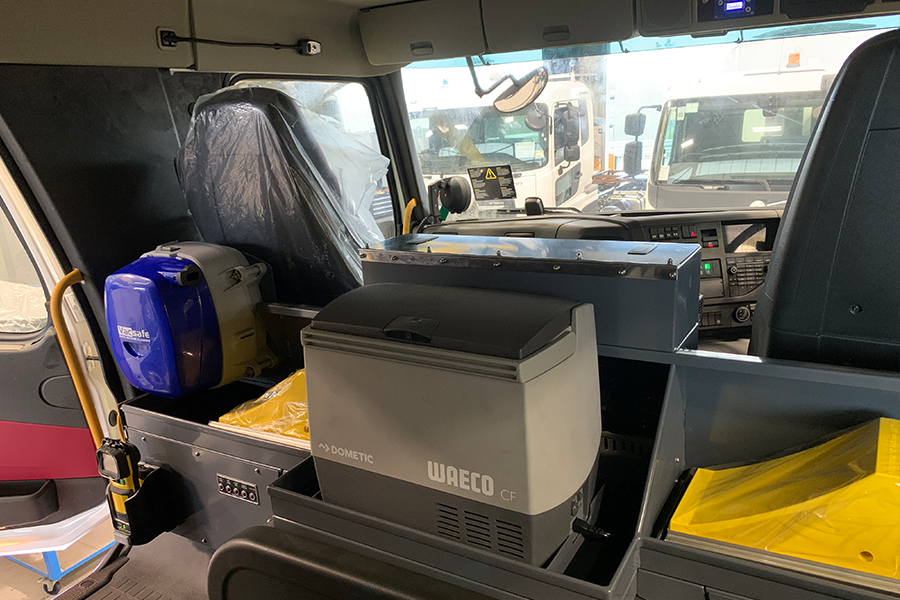

Designed for In-Cabin Use
Compact and lightweight design (6 kg) allows for easy installation inside operator cabins, clean rooms, and confined workspaces.

Reduces Filter Maintenance
Prevents excessive dust from reaching return air filters by removing it at the source—operators’ boots, clothing, and floor surfaces.

24V or 240V Options Available
Available in both DC 24 V and AC 240 V models to suit various vehicle and site configurations.

Industrial-Grade Performance
Powerful suction (200W) and durable construction ensure efficient operation in demanding mining and industrial environments.

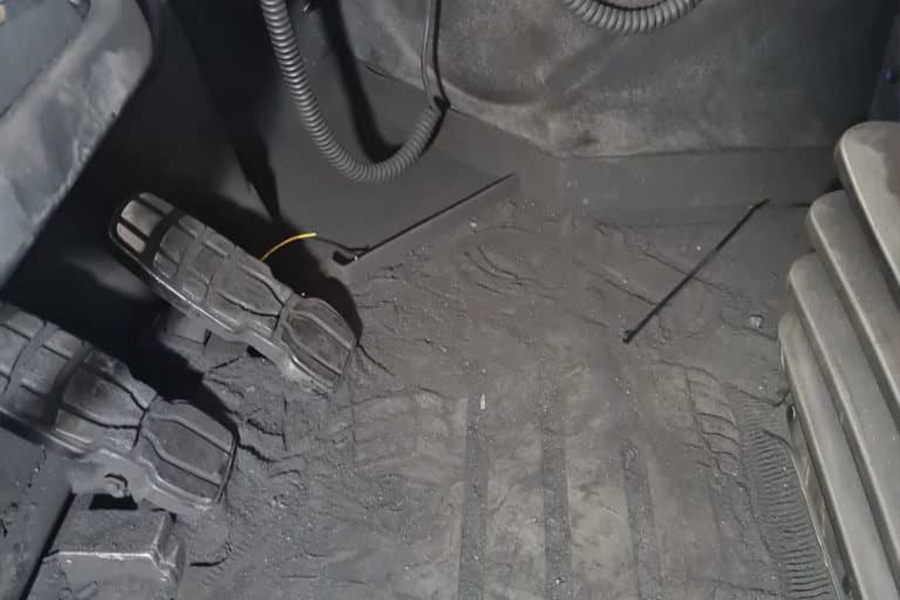

Prevent Filter Overload from Settled Dust
Shows typical cabin dust build-up from boots and clothing, vacuum before operation to stop it becoming airborne and clogging your HVAC filters.
Specification
Parameter | Value |
---|---|
Voltage | DC 24 V ~ 28V |
Current | Max 24 A |
Power Rating | 650 W - 730 W |
Suction Power | 200 W |
Power Cord Length | 35 cm |
Tank Capacity | 6.2 L |
Weight | 6 kg |

Parameter | Value |
---|---|
Voltage | AC 230 V |
Current | Max 3 A |
Power Rating | 700 W |
Suction Power | 200 W |
Power Cord Length | 5 m |
Tank Capacity | 6.2 L |
Weight | 5 kg |

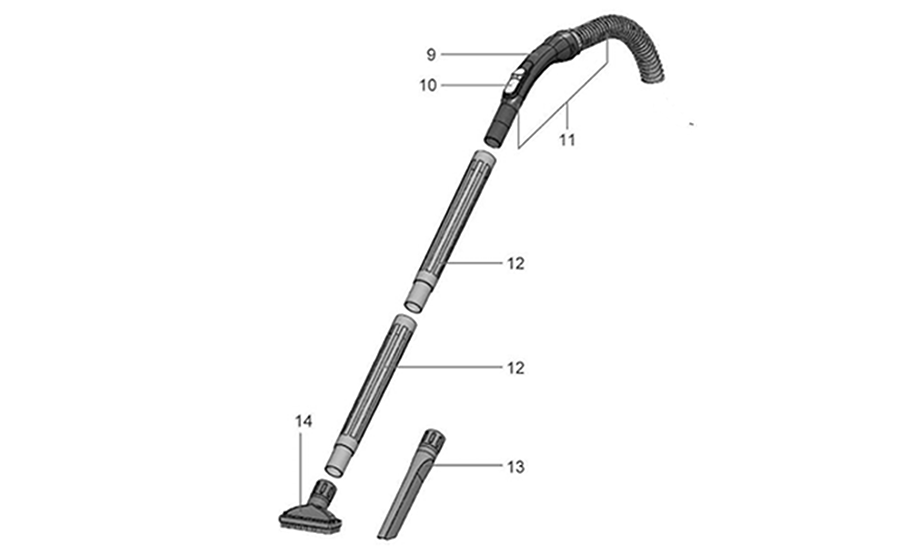

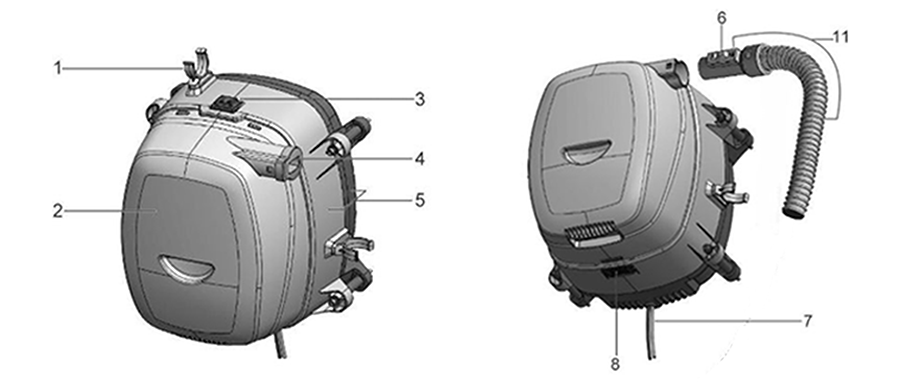

Item Number | Description |
---|---|
1 | Hose Clip |
2 | HEPA Filter Cartridge |
3 | Power Switch |
4 | Filter Sealing Plug |
5 | Motor Base |
6 | Hose Connector |
7 | Power Cord |
8 | Filter Release Button |
9 | Bend Connector |
10 | Air Adjuster |
11 | Hose Set |
12 | Extension Pipe |
13 | Crevice Tool |
14 | Upholstery Nozzle |

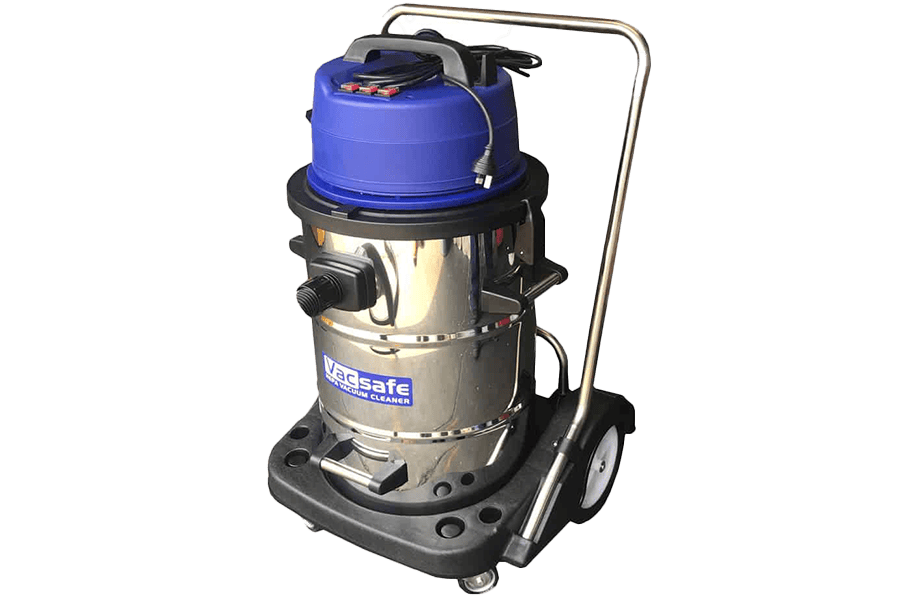

Wet/Dry VacSafe Workshop Version
A high-performance vacuum equipped with three individually controlled motors for powerful suction and minimal noise. Suitable for use in workshops, airports, construction sites, and mining vehicles, this unit is designed for demanding environments.
In mining applications, dust brought in by boots, clothing, and open cabin doors can compromise the effectiveness of pressurisation systems. VacSafe enhances cabin air quality by reducing airborne dust, minimising filter loading, and preventing secondary exposure for operators.
Includes standard accessories: trolley, fleece bag, crevice tool, round brush, 3-metre flexible hose, 450 mm brush and squeegee nozzles, washable fabric filter, and stainless steel extension pipes.
Parameter | Value |
---|---|
Voltage | 220 V - 240 V |
Power | 3600 W |
Motors | 3 * 1200 W dual stage motor |
Water Lift | Up to 2200mm H2O |
Body Size | 62cm * 57cm * 95cm |
Cord Length | 5 m |
Stainless Tank Capacity | 77 litres |
