Powered HEPA Recirculation Filter
Actively Remove Dust and Reduce Decay Time
Ideal for high-dust environments or customised filtration systems, it actively pulls and filters recirculated air to remove fine dust and airborne contaminants. Equipped with a HEPA H14 filter and a variable speed fan, it rapidly reduces particle concentration after door openings or operator entry, improving dust decay time and ensuring the cleanest air in the operator’s breathing zone.
Available in 12 V and 24 V configurations
Applications

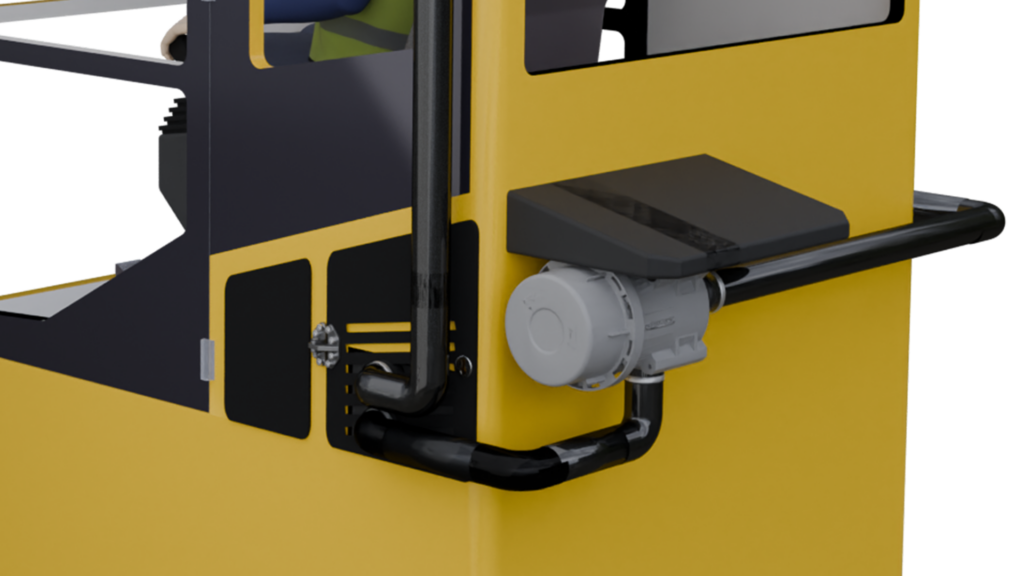

Operator Cabin Pressurisation

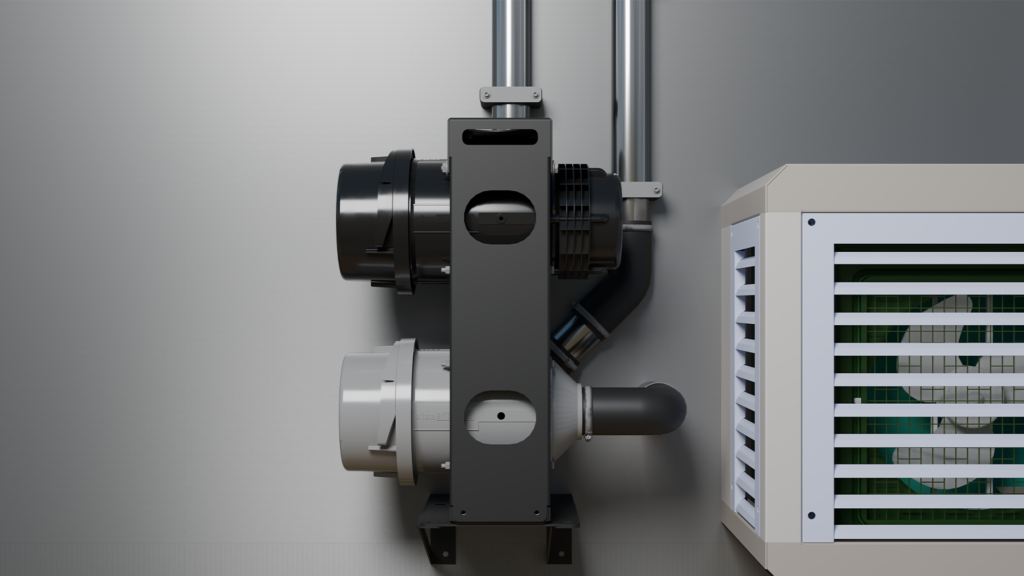

Clean Room Pressurisation
Gallery
Caterpillar Excavator 330GC
Sumitomo Excavator SH210-6
Komatsu Excavator PC2000-11R
Komatsu Loader WE1850-3
Epiroc Drill T40
Epiroc Drill PIT Viper 271
TBM Control Room (Tunnelling)
Container Clean Room
Control Room (Recycling)
Control Room (Recycling)
TBM Break Room (Tunnelling)
Crusher Room (Mining)
Features
Hover over the images to play the videos
HEPA H14 Filtration
Removing 99.995% of airborne particles at 0.3 microns, ensuring exceptionally clean air.
Reduce Decay Time and Downtime
Quickly remove fine dust after door openings, reducing operator exposure and unplanned downtime.
HVAC System Integration
Supports extra filtration layers for maximum protection in extreme dust conditions.
Variable Speed Motor
Automatically adjusts as the filter loads to reduce strain and noise, enhancing efficiency and operator comfort.
Twist-Lock Filter
Quick and secure filter replacement mechanism for easy maintenance and minimal downtime.
Specification
| Parameter | Value |
|---|---|
| Length | 456.4 mm |
| Height | 264.1 mm |
| Width | 264.1 mm |
| Weight | 5 kg |
| Voltage | Min: 22 V; Typ: 24 V; Max: 30 V |
| Current | Typ: 1-10 A; Max: 11 A |
| Part Number | Description |
|---|---|
| 200002 | 12 V / 24 V DC Brushless VSD Motor |
| 200006 | TL Fan Blade |
| 200007 | TL Nose Cone / Pre-cleaner |
| 200008 | TL Motor Housing |
| 200009 | TL Filter Housing |
| 500000 | HEPA H14 Filter |
