Komatsu 830E HV Field Trial



Ongoing trial of BreatheSafe Dust Mitigation for a QLD Coal Mine

In November 2020, BreatheSafe consulted Meandu Mine of Stanwell Corporation concerning airborne mine dust in their high voltage cabinets. A High Pressure HEPA Filtration system was specifically designed and installed on a Komatsu 830E HV cabinet with four TL pressurisers.

Last Updated: 26/10/2021

Overview

The HV Cabinets are designed to use the unfiltered air from the alternator fan to cool the heat sinks on the inverters.

As the air is unfiltered the cabinets are prone to mine dust ingress requiring cleaning leading to potential mine dust exposure for maintenance staff.

Its our understanding that most site maintenance crews use compressed air to clean cabinets, which is a source of generating airborne dust inside the workshop area with potential risk for peak dust exposure for workers near the plant.

Aim

To develop an engineered solution to eliminate the requirement to clean the cabinets at all.

Komatsu 830E HV Cabinet 2800 hours

The Problem

Dust in the high voltage cabinet

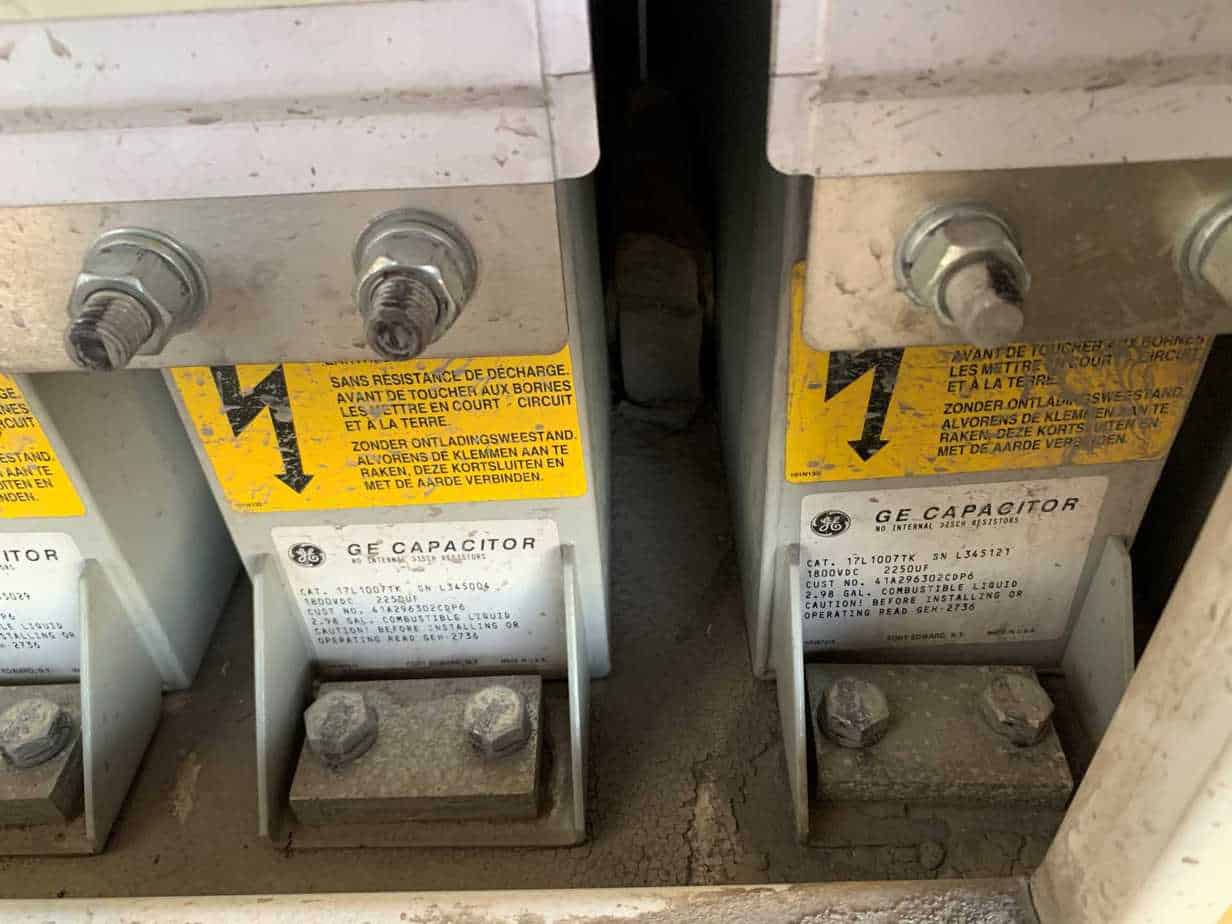

Dirty HV Cabinet
Dirty HV Cabinet

Dust and health

Exposure to high concentrations of respirable dust will lead to the development of a range of serious irreversible lung diseases such as silicosis.



Issues with high and low voltage cabinets

  • Cabinets subject to unfiltered air introduced via the alternator fan to cool heat sinks.
  • Hazardous dust is forced though unsealed duct seams / deteriorated component gaskets into the main compartment requiring maintenance and cleaning.
  • Cleaning of these compartments typically occurs every 500 hours and presents risk of hazardous dust exposure to workers.

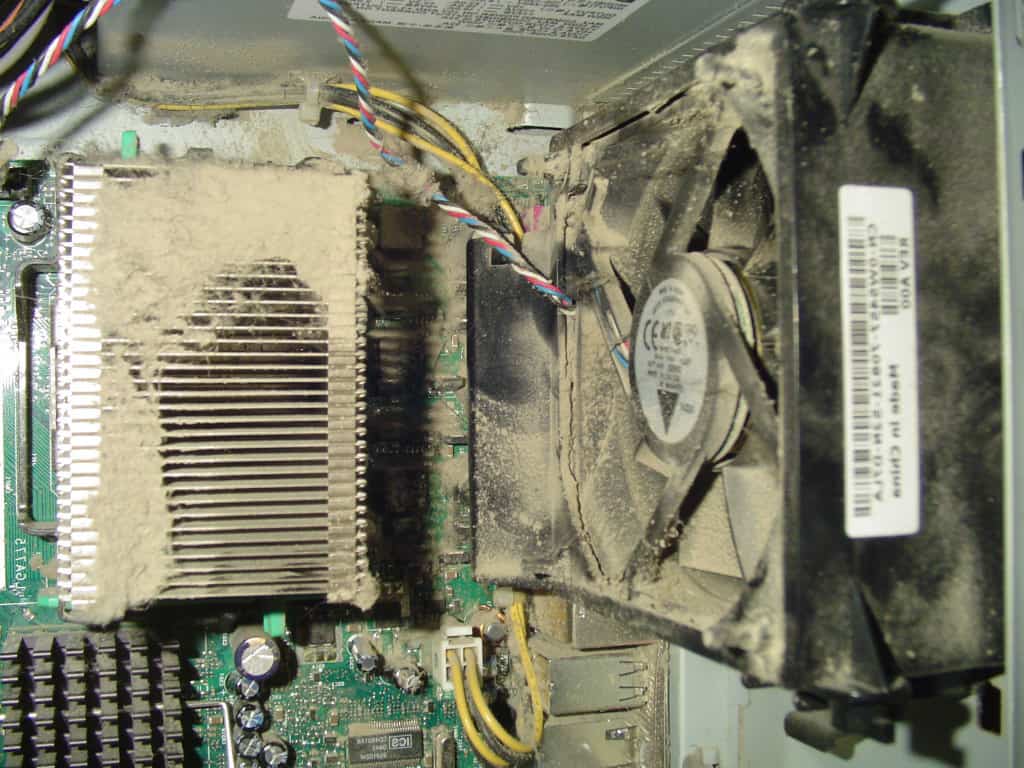

Dust and electronics

There are several good reasons to keep dust off and out of electrical components.

  • Cooling – if a component is covered by dust its core temp will slowly rise due to the dust acting as an insulator.
  • Some components are not as sealed as we would like so conductive materials can settle on/in the components leading to failure.
  • A lot of dust can become corrosive when moisture is present so if we keep the dust off & out of the component the you will not get the corrosion.
  • By maintaining pressure in the compartment, we are reducing the amount of moisture being forced through it by the cooling system.
  • Less wiring connector damage both by the dust & by the service team having to force the plugs apart as fine dust is locking them together reducing.
  • The aim is to ensure that we are safely circulating enough cleaned fresh air through electrical enclosures to keep the clean side duct free and cool.
  • Improve machine up time as they will not have to be stood down for cleaning.
  • We believe that if the cabinets are kept clean you will get an improvement on the reliability of each component.
Dirty HV Cabinet

The Solution

Engineering Control

  • We feel that the BreatheSafe solution should be ranked as the highest level of protection our engineering control has eliminated the requirement to clean the compartment using compressed air.
  • Dramatically reducing potential exposure to all personal in the area.
  • We recommend that the compartment is cleaned prior to installation of the system.

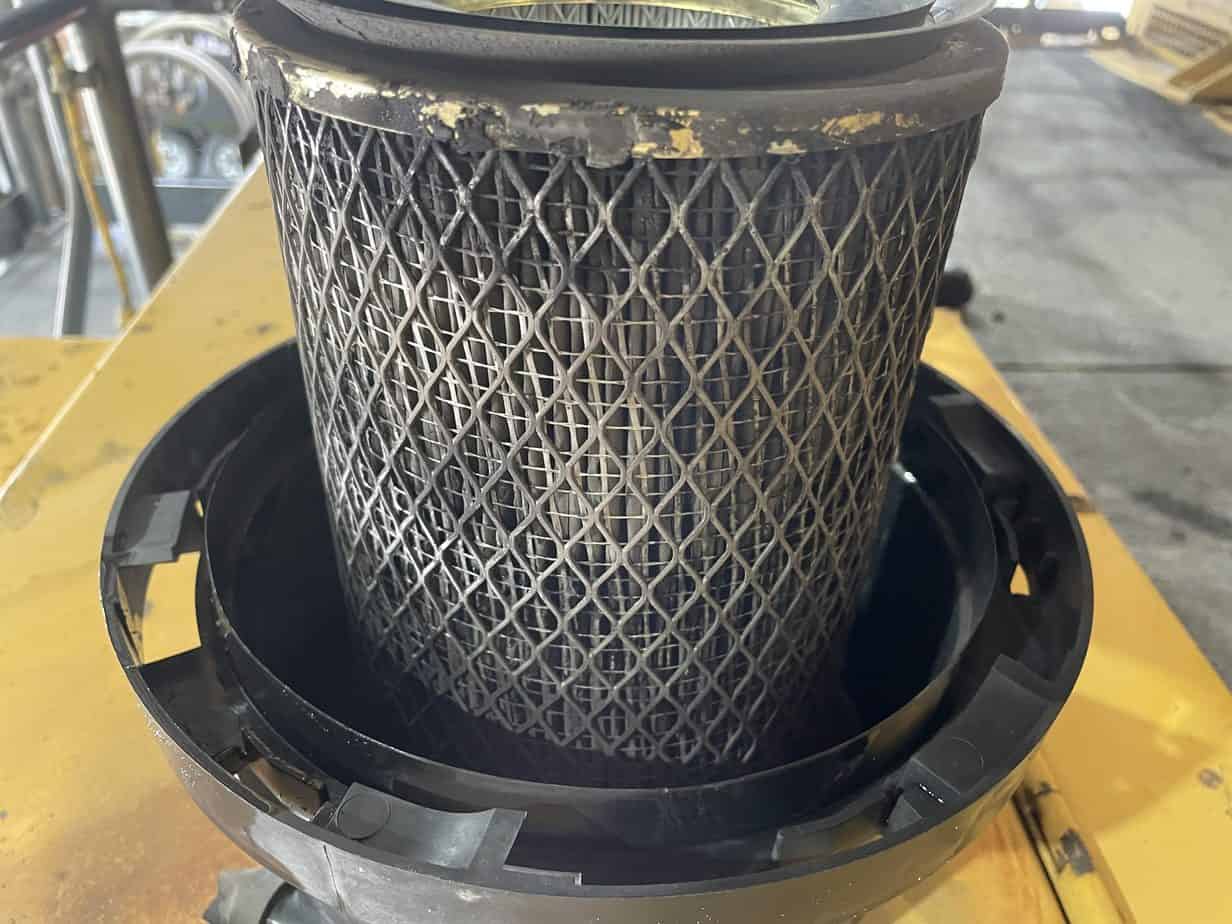

  • Note we will still have the requirement to change the filters.
  • We feel that PPE and RPPE when blowing out cabinets is not enough protection. It is the least reliable control measure.
    Engineering Control Heirarchy

    BreatheSafe Design

    High Pressure HEPA Filtration

    • Cabinets have been cleaned out prior to installation.
    • The Main HV cabinet has been fitted with 3 High Pressure TL unit.
    • Arc Shoe cabinet has 1 standalone High Pressure TL unit.
    • These systems are variable speed pressurisation and HEPA H14 filters.
    • Max pressure achieved with the engine off: 1200 Pa above ambient.
    • Auto pressure setpoint at 400 Pa above OEM engine-driven fan pressure.

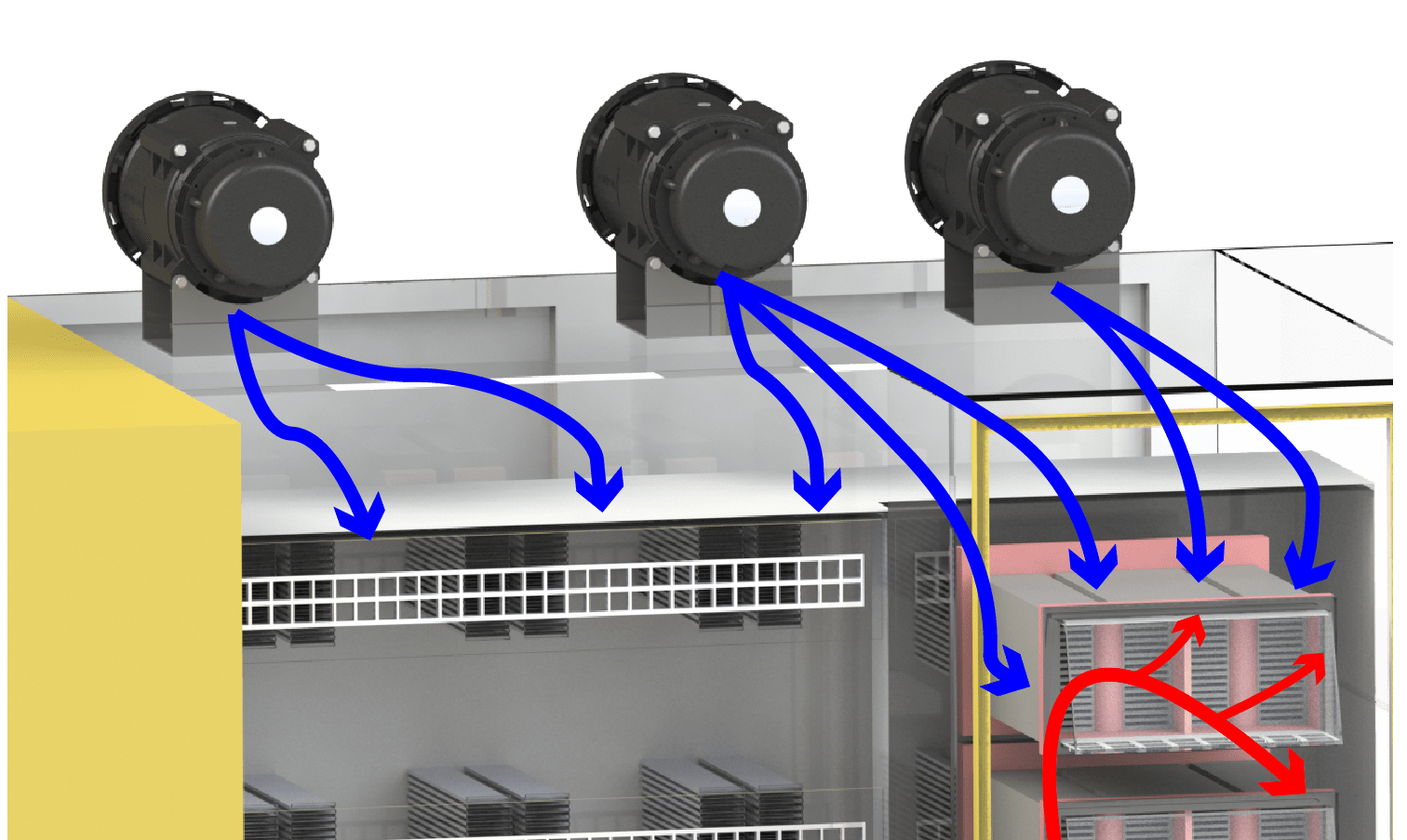

    • TL units force air into HV cabinets creating positive pressure.

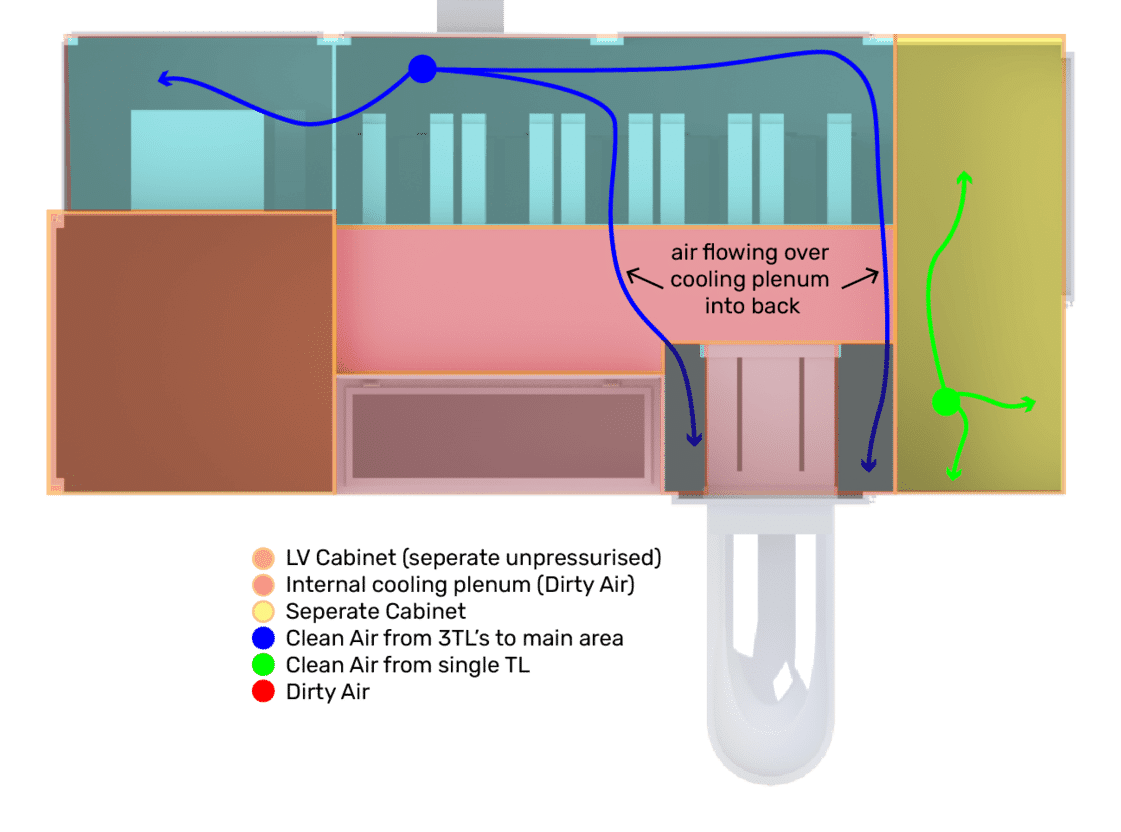

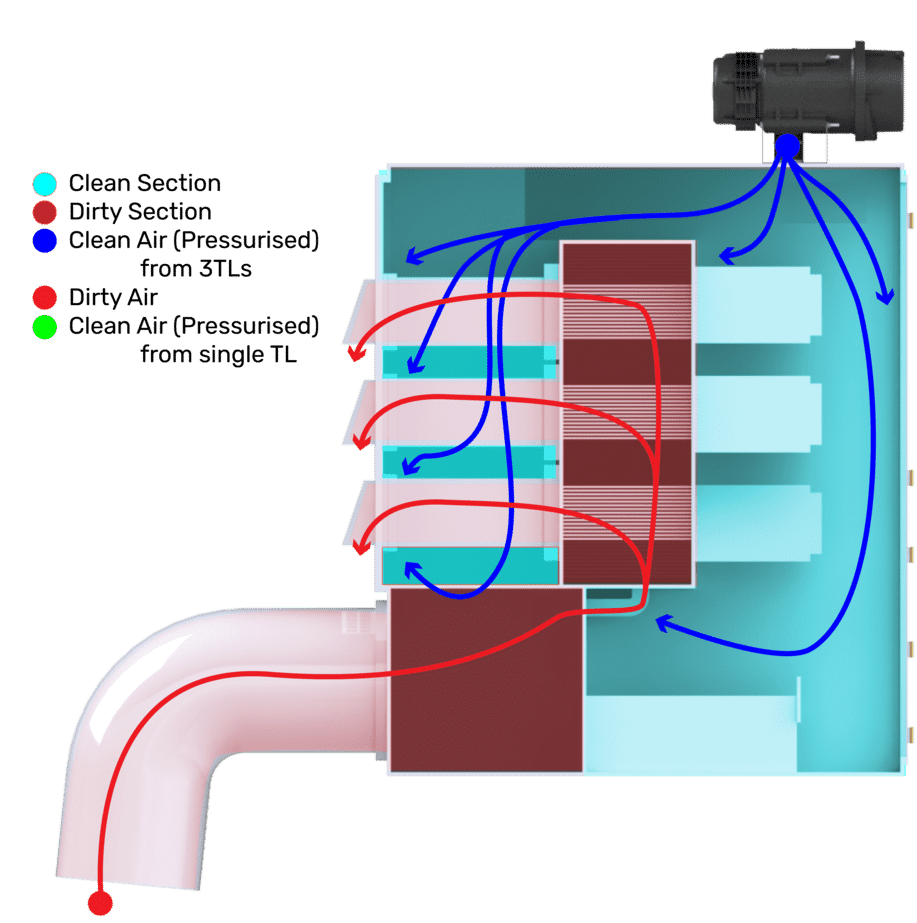

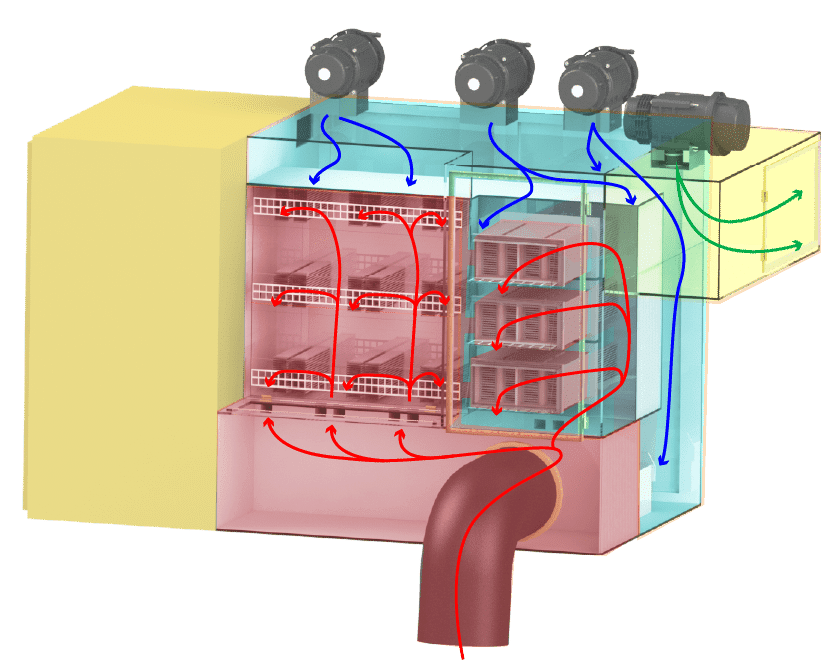

    High Pressure Hepa Filtration units positively pressurise cabinet pushing against dust ingress from unsealed ducts, gaskets and door seals, preventing dust-laden air from entering the cabinet.

    Click images to expand

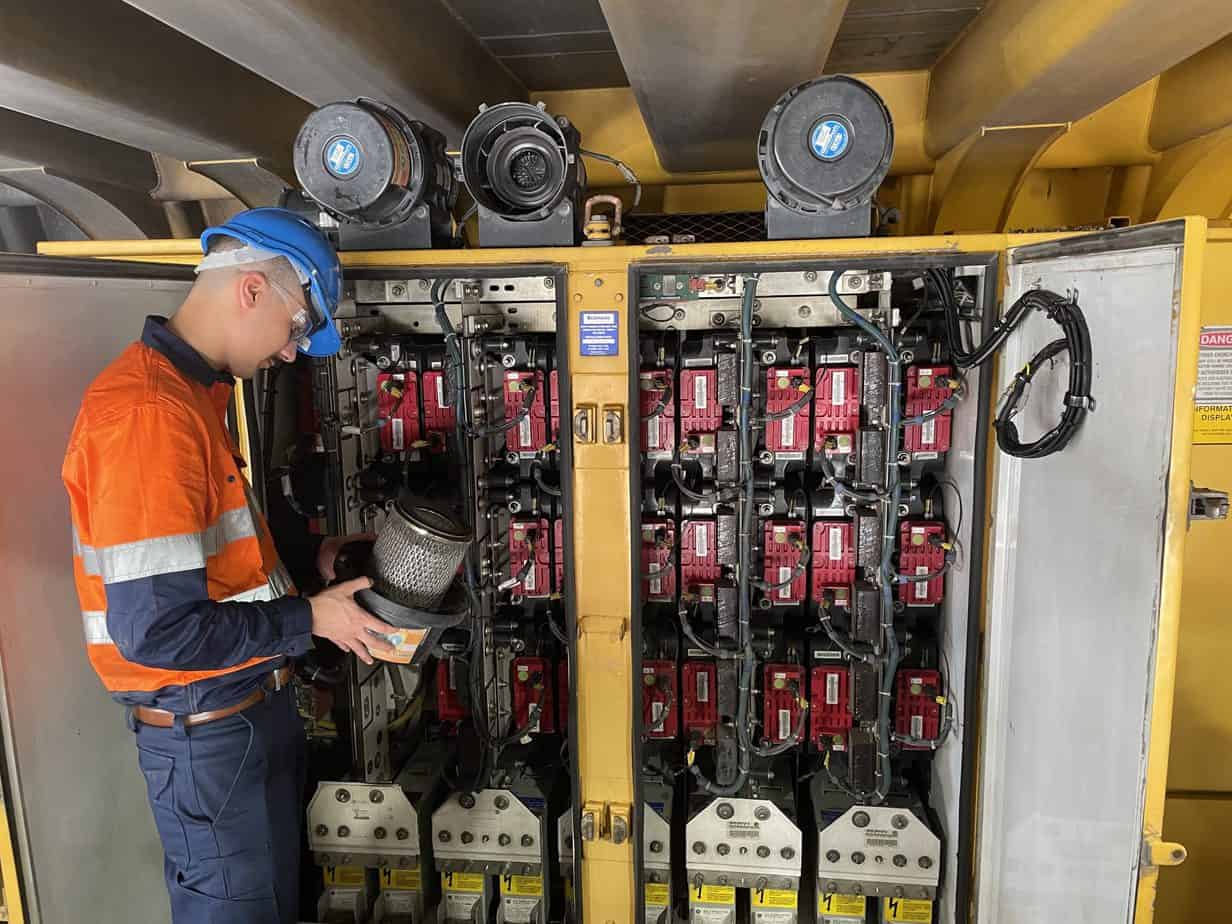

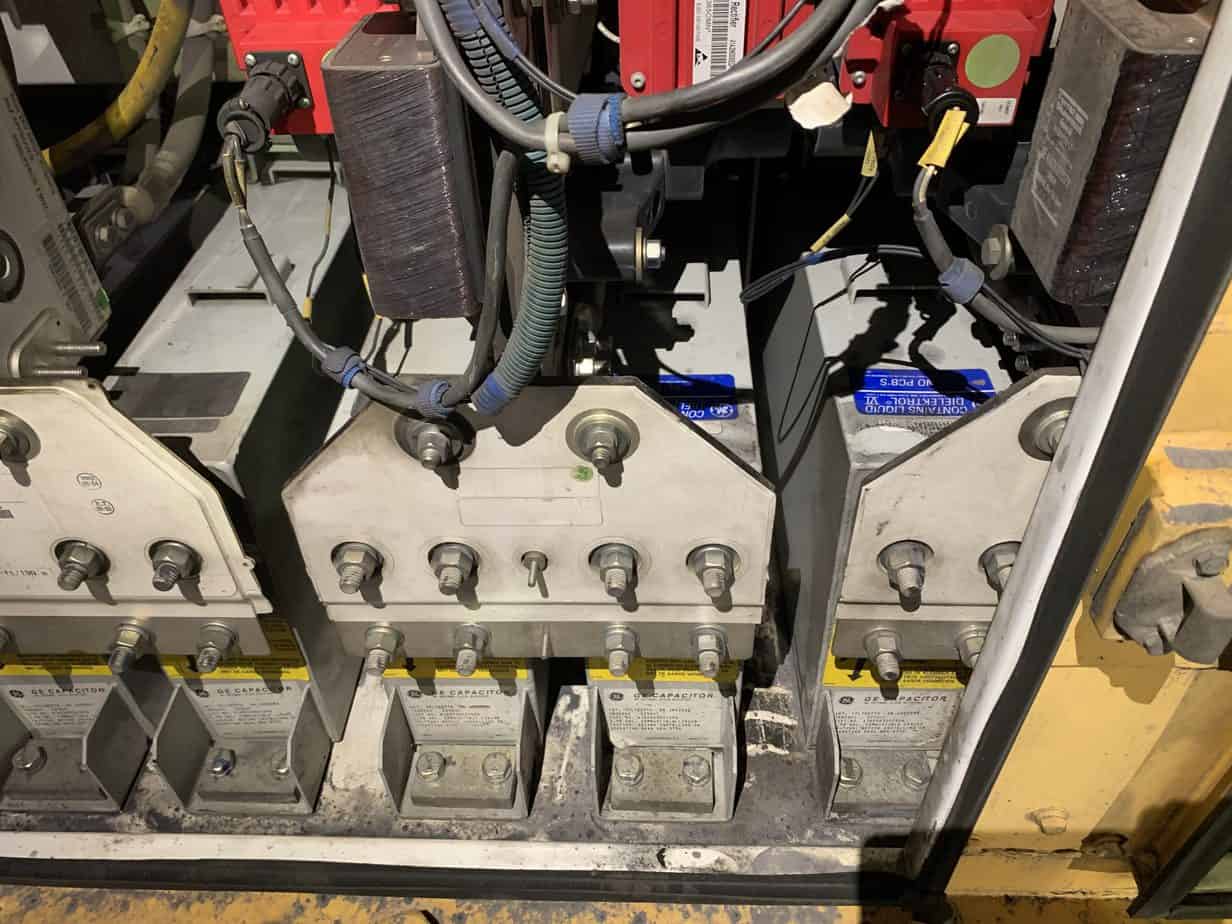

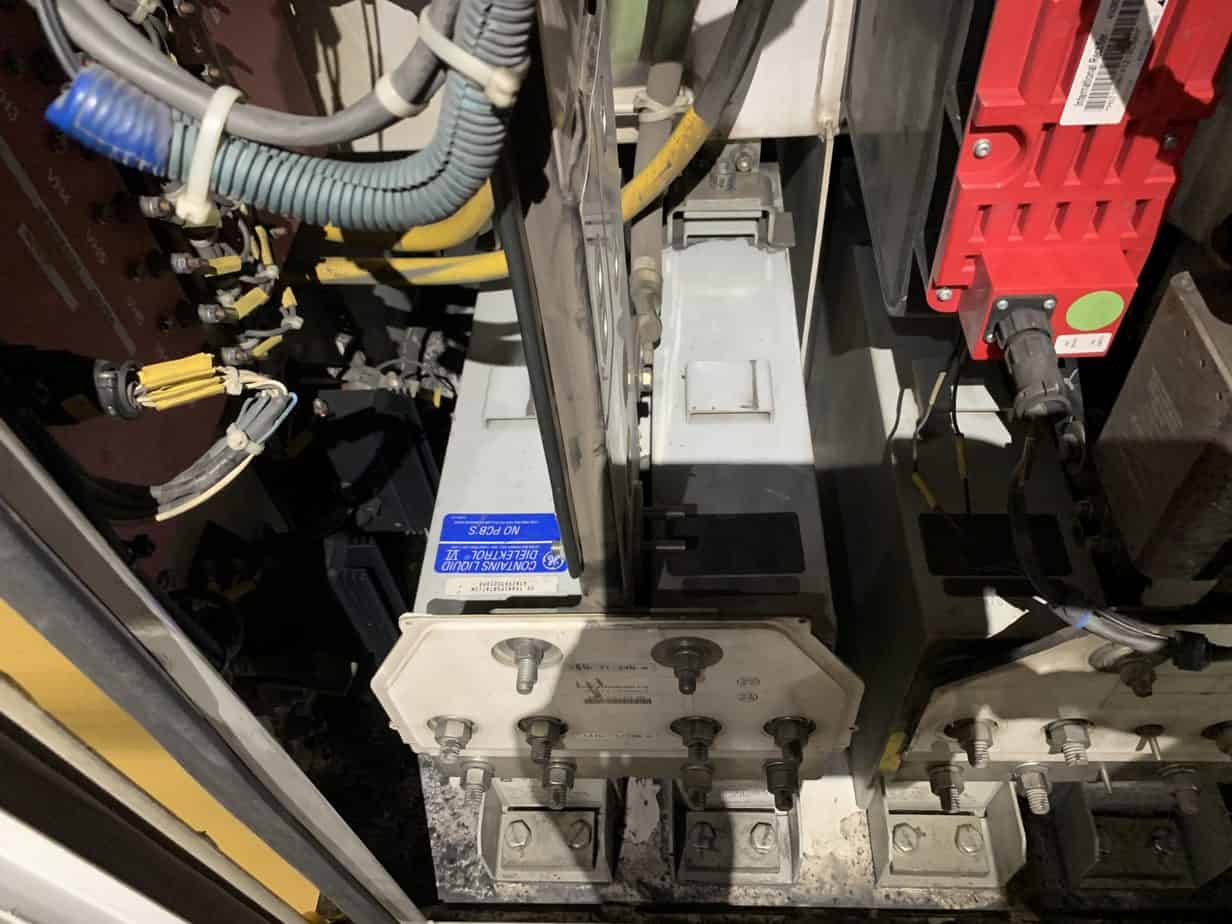

    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser

    Installation

    • Easy installation in one day
    • Everything provided for installation in the install kit
    • 3 x 76mm & 20mm power supply aperture from top of the cabinet to accommodate pressurisers.
    • Controller mounted to top of centre access door – also pressurised through HEPA filtration.
    3715 Hours BreatheSafe HV Cabinet Komatsu Pressuriser

    The BreatheSafe High Pressure Filtration Unit is the only pressuriser on the market capable of producing the pressure required to maintain a dust-free cabinet

    Return On Investment

    This is not an extra cost!

    We have tried to be fair with our cleaning costing and a hygienist to do testing. Does not take into account extended component life or reduced maintenance.

    BreatheSafe HV Cabinet Komatsu Pressuriser
    BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    3715 Hours BreatheSafe HV Cabinet Komatsu Pressuriser

    The Result

    The BreatheSafe variable speed high-pressure system is proving to significantly reduce/eliminate dust loading in the high voltage cabinet. One comment was that the cabinets are getting cleaner. As time goes by, we feel the dust in the cabinet will very slowly be forced out of the cabinet = so it will gradually get cleaner.

    The system is 11 months in operation, and components, including serviceable filters, have withstood harsh weather and mining conditions whilst maintaining efficiency.

    Achievements:

    Cleaning with compressed air has ceased/worker exposure to mine dust diminished! The cabinet is maintaining a significantly reduced dust load. Internal temperature maintained relevant to ambient. Components/wiring easily visible for fault finding. Minimised static dust on components – Extended component life. Heavily reduced downtime for maintenance/repair costs. The system was installed in November 2020 and has done over 3715 hours of service. The system has been inspected at 1000, 1500, 2230 and 2800 hours and is still running the original filters. System capacity maintains a 57% load with no drop in sealing efficiency after 3715 hours. Max pressure test dropped 390 Pa to a total of 810 Pa– consistent with filter loading/truck voltage & door seals.

    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser
    2800 Hours BreatheSafe HV Cabinet Komatsu Pressuriser

    BHP Autonomous Cabinet Field Trial

    BHP Autonomous Cabinet Field Trial

    Caterpillar 793F Autonomous Field Trial



    BHP Trial

    In 2018, BHP consulted with BreatheSafe concerning airborne mine dust mitigation for their Autonomous 793F trucks. A field trial was started to deliver a full system to mitigate airborne dust, heat and water ingress with their Caterpillar fleet of Autonomous Trucks – electrical cabinet.

    The Problem

    The ongoing issue is airborne mine dust: there is dust build-up inside the electrical cabinet. This is causing electrical systems to run hot due to dust accumulation and electrical connections to corrode and fail when contaminated with abrasive particles. Airborne mine dust can comprise different materials that affect components with abrasive and corrosive properties.

    Also, temperature control issues are critical in enclosure design. When temperature increases, it will affect electrical components. The optimal temperature for most electrical equipment is between 40⁰C to 50⁰C. Thus, when the internal temperature of electrical components rises above the optimal range, then their lifespan will decline. Further complication is OEM electrical cabinet has a small opening door which makes servicing difficult and time consuming



    The Solution

    BreatheSafe custom design insulated cabinet enclosure: equipped with HEPA fresh air pressurisation integrated with temperature sensing and active cooling plus large access door; the key features are:

    • Keeps electrical components dust free.
    • Dramatically reduced maintenance costs.
    • Active cooling maintains enclosure internal temperature below 50⁰C.
    • Automatic Pressure Control (positive pressure is always maintained).
    • Remote monitoring: ongoing data for temperature and positive pressure.
    • Long life brushless electrical motor.
    • HEPA filters mitigate dust particulate down to submicron level.
    • Large door makes easy access to internal components.
    • No tools required for all dust mitigation system servicing.
    • Full service back up

    The Result

    BreatheSafe autonomous cabinet enclosure can effectively control airborne dust down to submicron level with active cooling program. As soon as temperature rises above 45⁰C then pressuriser motor goes into high speed to cool enclosure effectively maintaining below 50⁰C.

    Remote monitoring data has assisted with maintenance schedule routine with real time data for dust loading calculation.

    Auto pressure control maintains positive pressure inside enclosure regardless of wind speed or as vehicle moves forward. Engine air pre-cleaner ejects coarse dust to successfully extend HEPA filters lifecycle.

    Trial success, BHP has placed order to convert fleet to BreatheSafe custom enclosure.
